Description
Choosing light and solid components for an RC electric glider can be a challenge. There are some many options…
But this 2-3S F5K Powerset will make your life a little easier 😉
Especially if you are building an F5K glider, or a powered version of a Shaka Slope Wing.
We’ve gone through the trial and error of choosing the components for you and now offer one of the most versatile F5K Powerset on the market.
2-3S F5K Powerset Features
– a reliable T-Motor 1507 KV2700 outrunner with M5 shaft
– 20A BLHeli_S ESC with 4.5A @ 5.6V BEC
– XT30 power connector on a 7cm power lead
– JR 3pin “servo” connector on the Rx side, on a 15cm lead
– 25mm spinner with 6×4 carbon prop by Vladimir’s Model or CN-Models, depending on your choice.
What F5K Powerset Is Best For
The choice of the spinner should depend on the model you are building.
The Vladimir’s Model option will best fit Maverick F5K & Shaka Slope Glider which are designed for this motor and spinner combo, or a Falcon F5K glider.

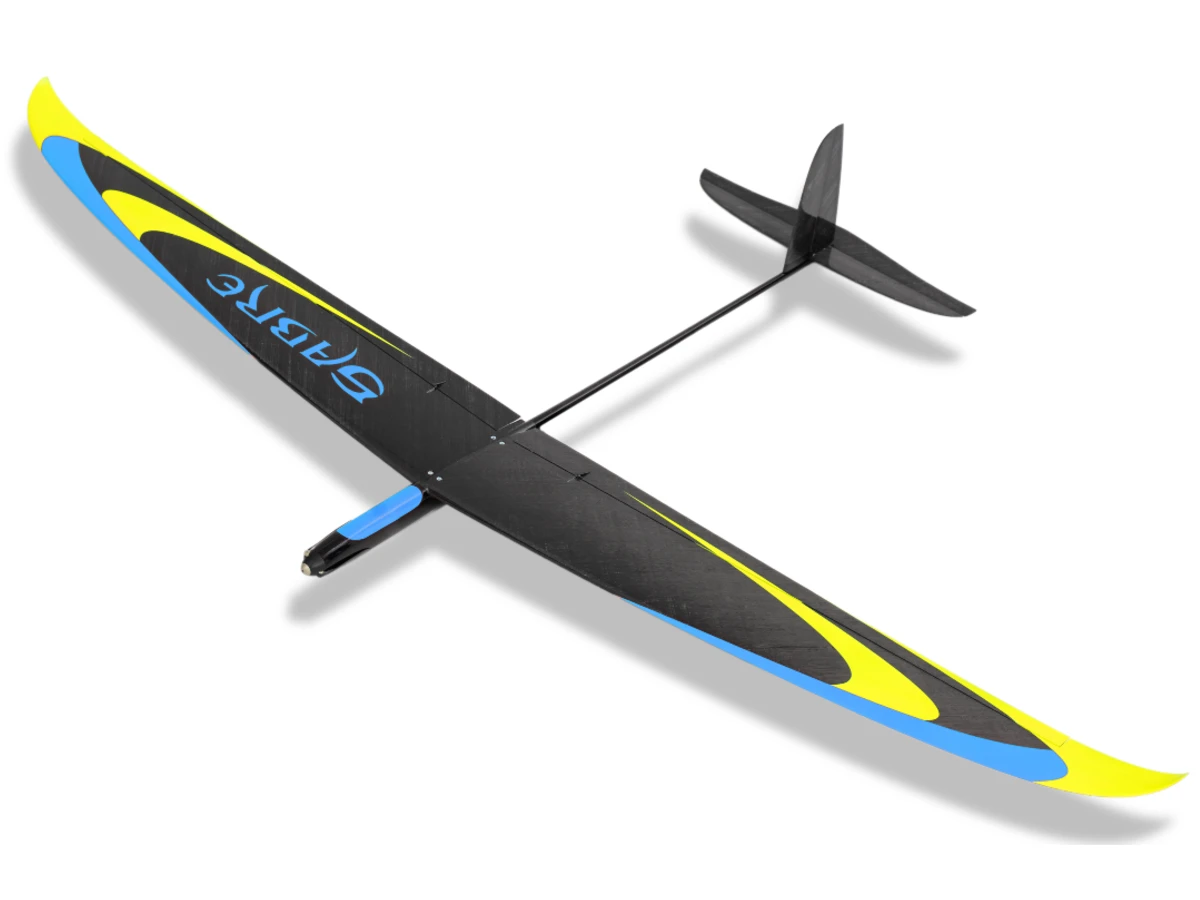

The CN-Models option will make a great fit for Sabre F5K or Falcon F5K if you like this option better.
Your choice will determine a mounting depth of the motor, so, please, keep this in mind or message us for assistance.
F5K Powerset Technical Data
This F5K powerset is recommended to work with either 2S or 3S LiPo batteries, and will provide plenty of juice to power four or six servos onboard of your glider at 4.5 Amps.
- Weight: 33g
- Thrust @ 2S LiPo: ~460g
- Thrust @ 3S LiPo: ~550g
* make sure to choose batteries with high discharge rate (70C+) for the best results. - Continuous Current: 20A
- Max Current: 25A
- BEC: 4.5A @ 5.6V
- Matching Prop Options: 6×4, 7×4 (your powerset comes with 6×4)
