Hawk 1m DLG

Description

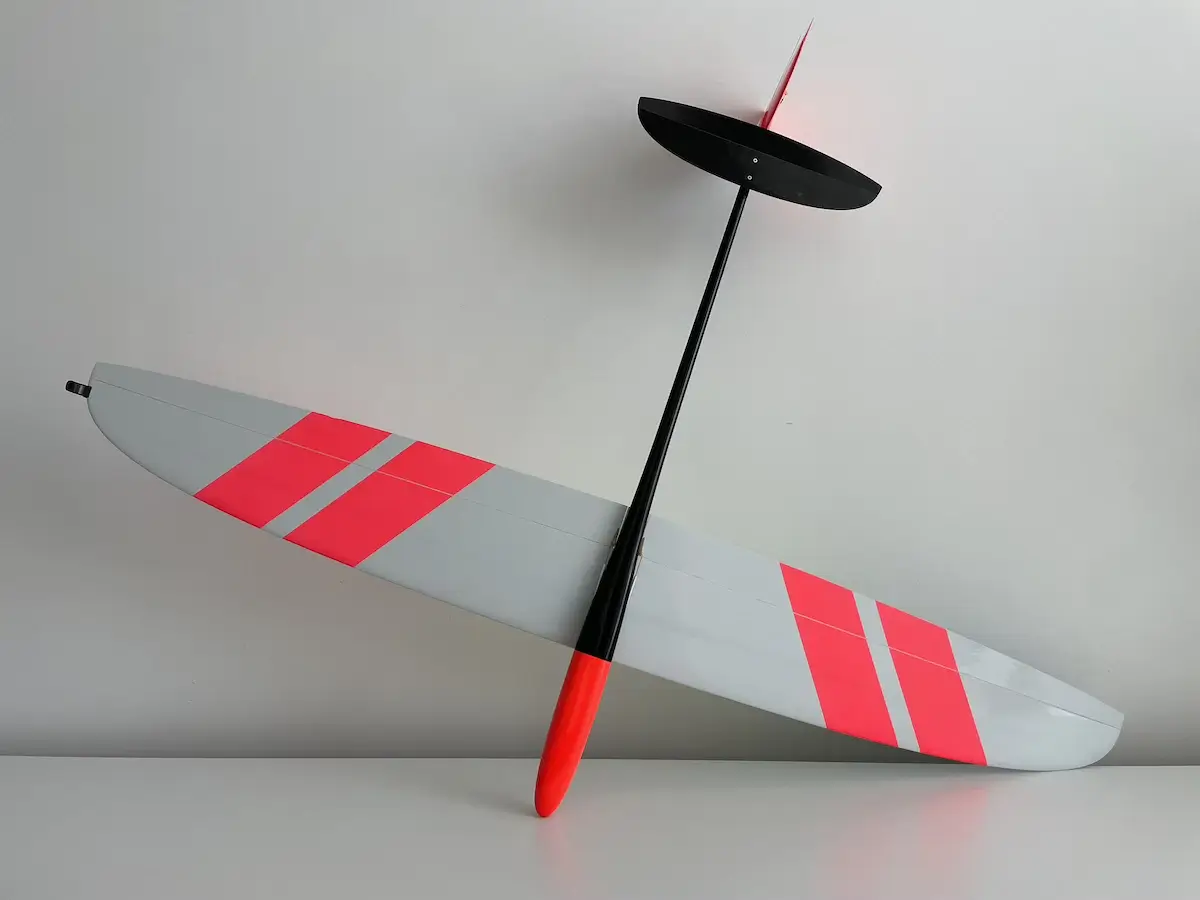

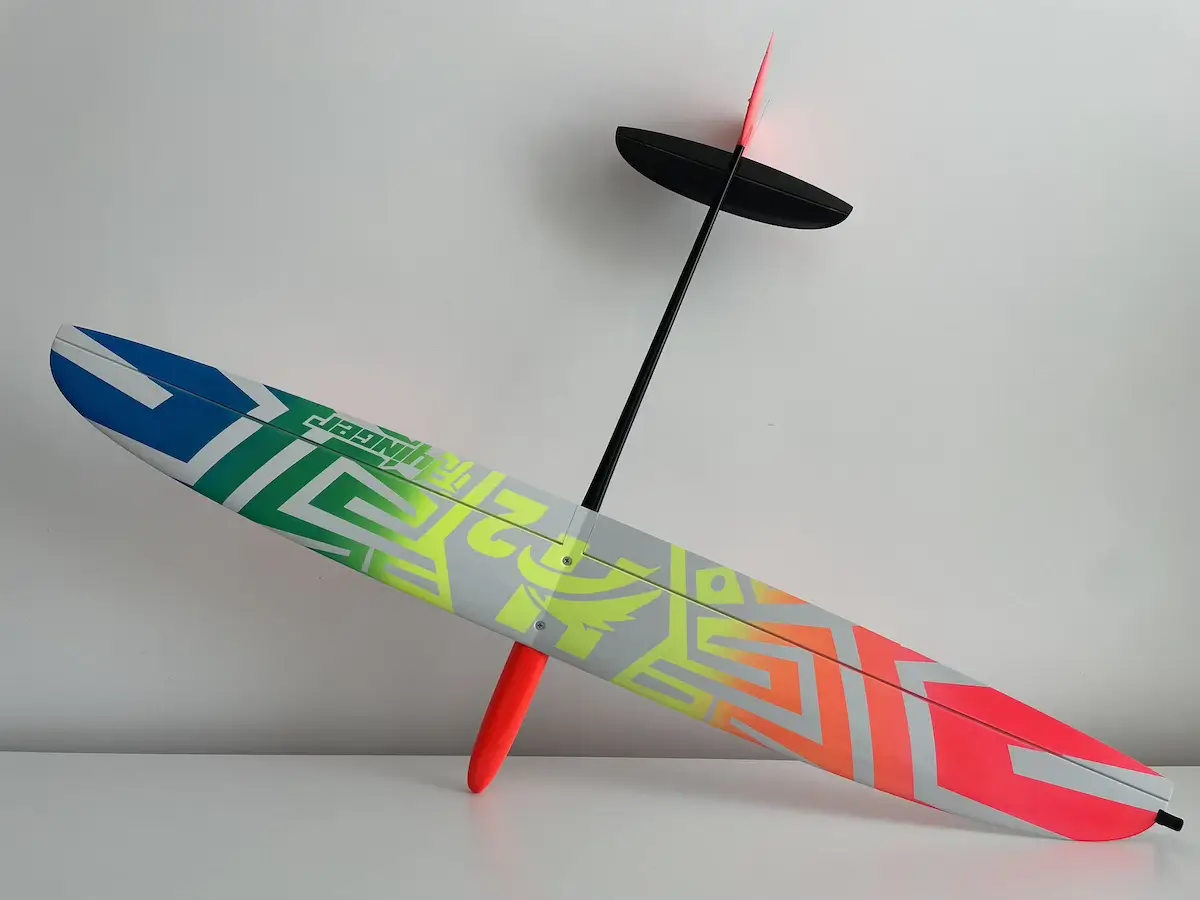

Hawk is a modern 1-meter DLG that is provided by Nikolay Gorban from High Quality with an exceptional flying performance for a very reasonable price.

The model is fully molded using high-quality materials. The fuse may have a hatch canopy to access the electronics. The wing is offered in one Glass and two Carbon versions – regular and light.

The fuse of this model can be made as a combination of 2.4GHz friendly glass fiber on the front and carbon on the tail.

The nose is designed to fit in all 4 servos in the pod. Considering the overall small size of the model, the pod has enough space for them, but you will need some basic building skills to put the model together.

The tail construction is very similar to the full-size DLGs with a removable horizontal stabilizer mounted underneath the tail boom. All the parts are molded which ensures shiny surfaces, exceptional stiffness, and low weight.

The wing construction features a solid CNC-cut foam core with a glass or carbon fiber layup. It comes almost ready to go, with the pre-hinged ailerons and shiny graphics.

The model comes with a complete accessories pack including the launch peg, control horns, torque springs for tails, pull wires, and a servo tray.

For more building tips, please, refer to the RC Groups Thread about Hawk DLG

Technical Data

Wingspan – 1000mm
Wing area – 10.9 dm2
Length – 717mm
Wing airfoil – AG46
Controls – Ailerons, Elevator, Rudder

Recommended Gear

Servos – Dymond D47, Blue Bird BMS101, KSTX06, Hitec HS40 (Emax ES9051/Turnigy MX-95 w/o a lower casing)
Battery – Turnigy Nano-Tech 300mAh 1S 20~40C or similar
Receiver – FrSky Archer GR6, FrSky Archer R4, Lemon Rx 6Ch, or similar

Hawk DLG Weight Data (g)
Layup	Glass	Light Carbon	Regular Carbon
Fuselage	15.5 – 16.5	14 – 15.5
Wing	54 – 58	45 – 48	53 – 56
Horisontal Stabilizer	3.2 – 3.4	2.8 – 3.1
Vertical Fin	3.3 – 3.6	2.9 – 3.2
Accessories and glue	8.5
Empty weight from	86	73	82
Flying weight from	123	106	117

Recommended Settings

Hawk DLG Control Throws and Camber Settings
CG	54-56 mm from wing leading edge
Rudderr	+/- 10mm
Elevator	“Touch-the-boom” up & max down
Ailerons	7mm up & 7mm down (optional negative differential)
Brakes	16-18mm down
Launch	0.5mm up
Cruise	0mm (aligned with the root)
Min Thermal	3mm down
Max Thenrmal	6mm down

For a better understanding of the Flight Modes and Camber settings for Hawk DLG, check the video below.
