Description

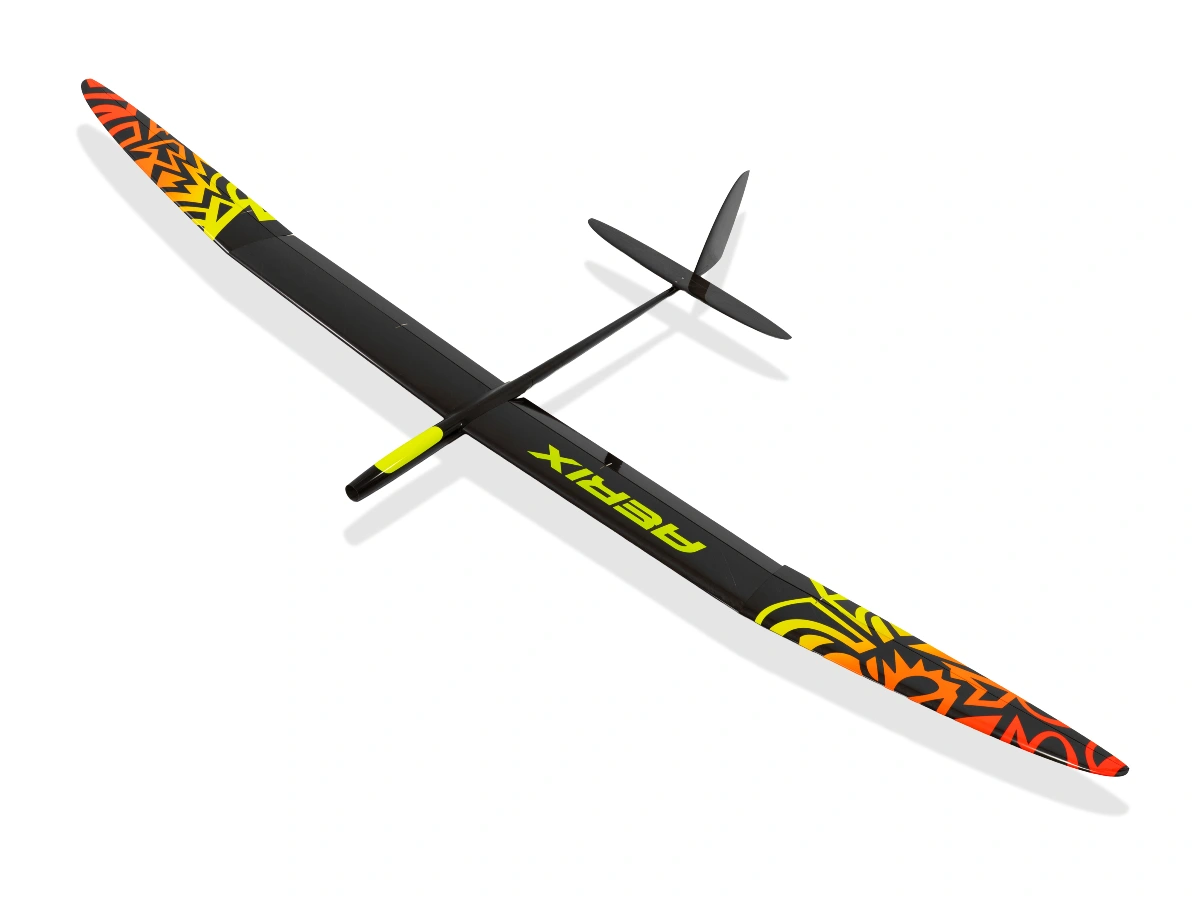

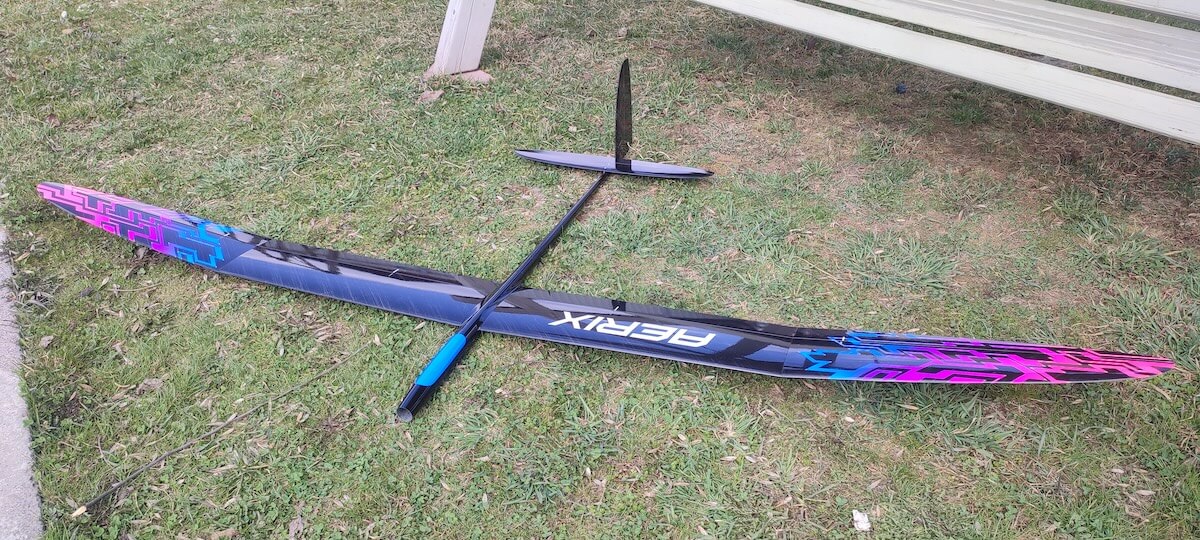

Aerix 2.5m F5J is a sweet spot for pilots looking to step up into F5J for grown-ups without breaking the bank.
RC gliders in this size still allow you to use some budget friendly components, while providing an exceptional performance an handling, compared to the full-scale 4m F5J.
The best part though, that Aerix is designed to fit into a tiny box for storage and travels, just under 80cm long.
If you’d like to learn more about the construction and performance of this model, check the RCGroups thread on Aerix.
Aerix 2.5m F5J-400 Features
This RC glider is one of the best in class for quality and weight.
But there are some exceptional things that put it ahead of many similar models, in eg.:
- Aerix F5J-400 is made of a spread carbon, so all the parts are very light and stiff

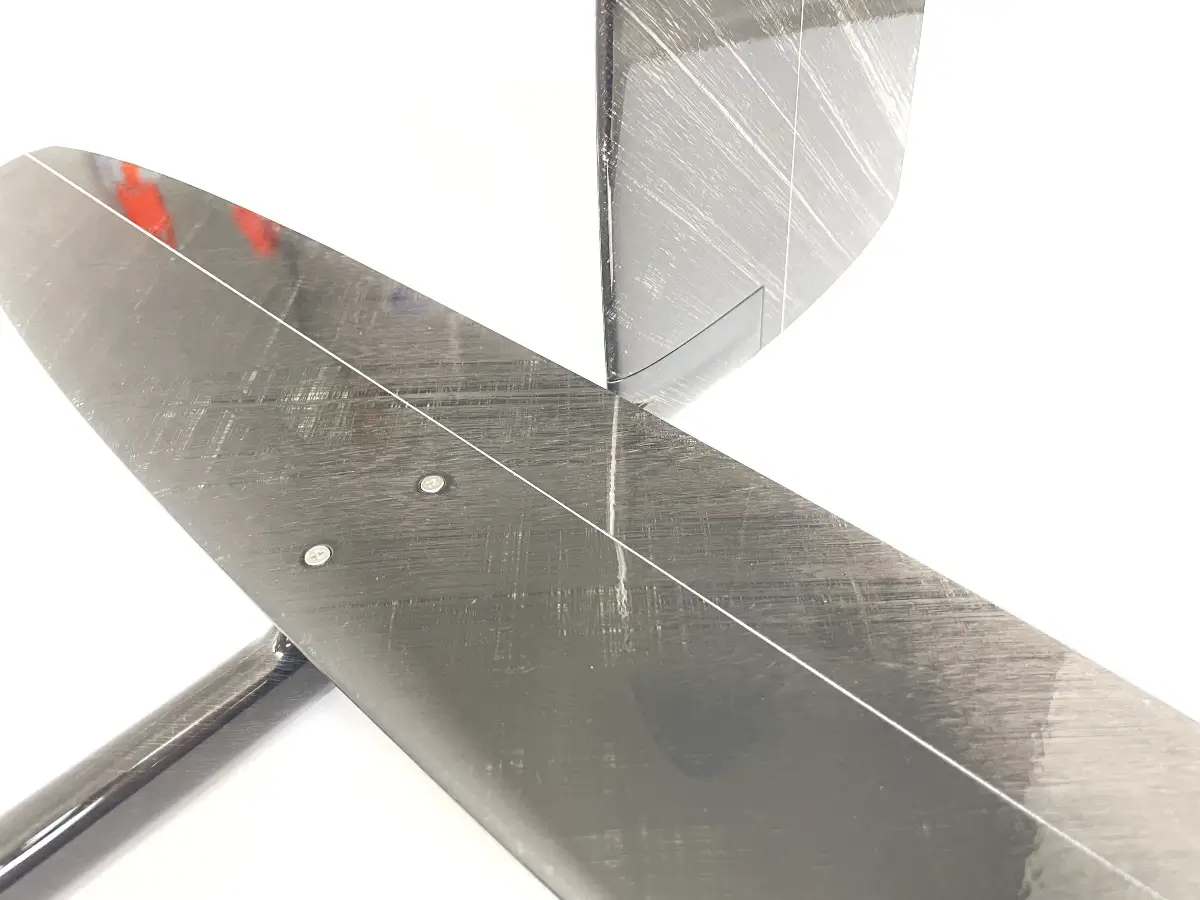

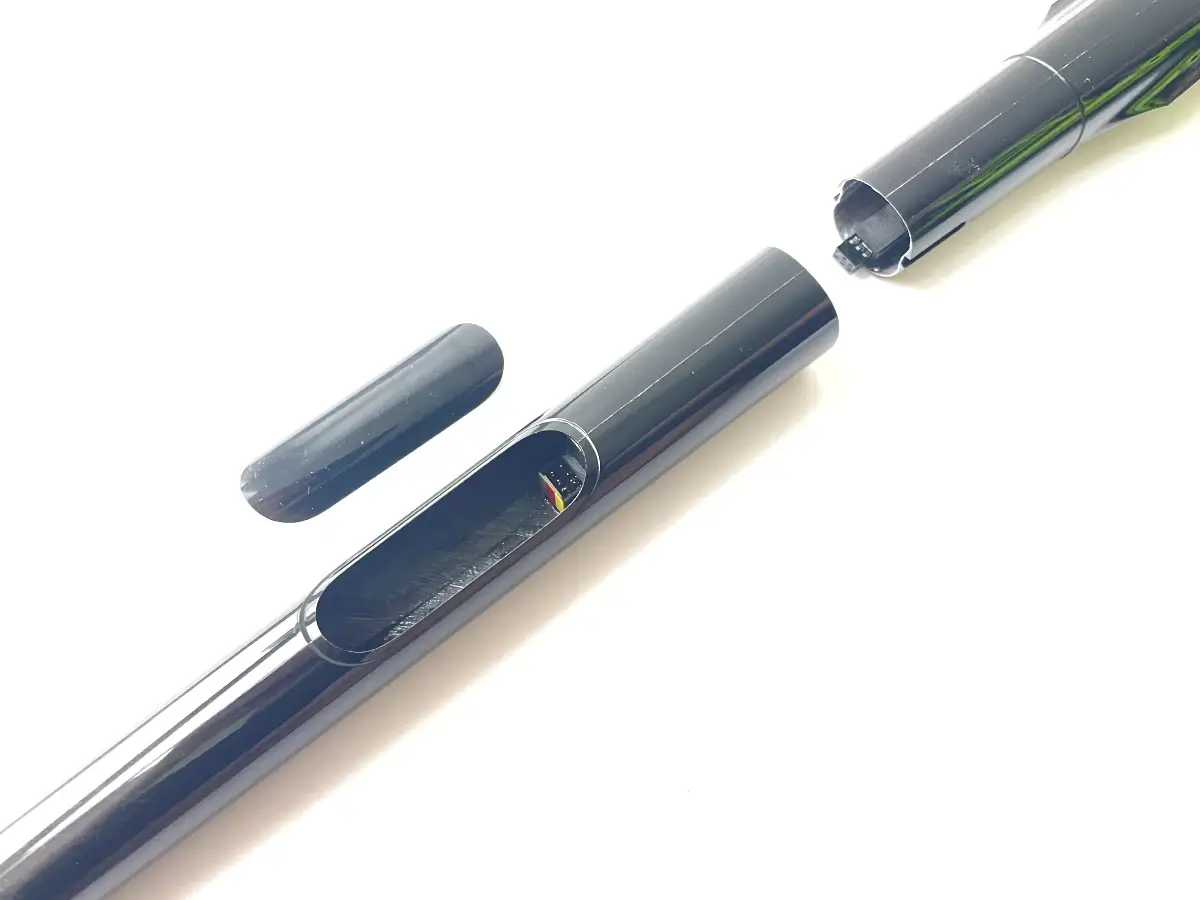

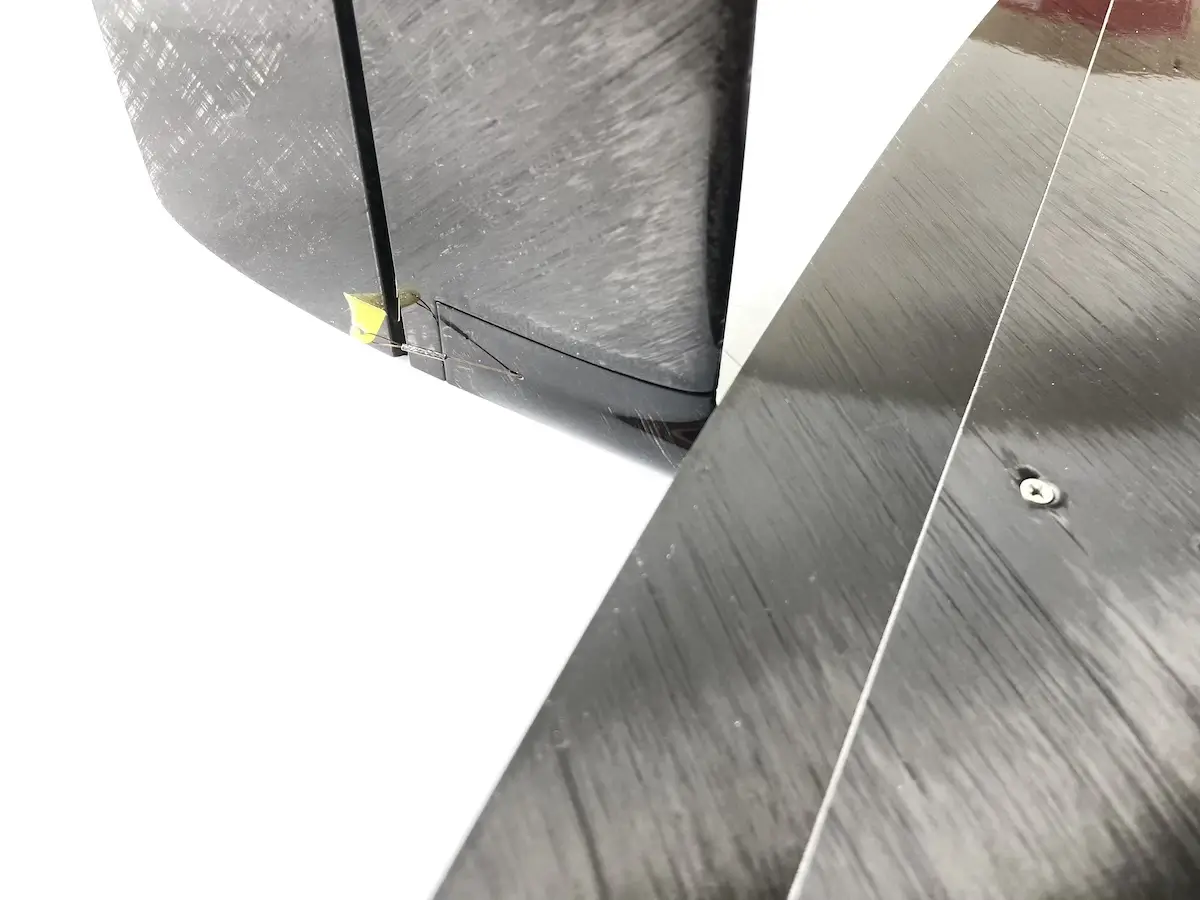

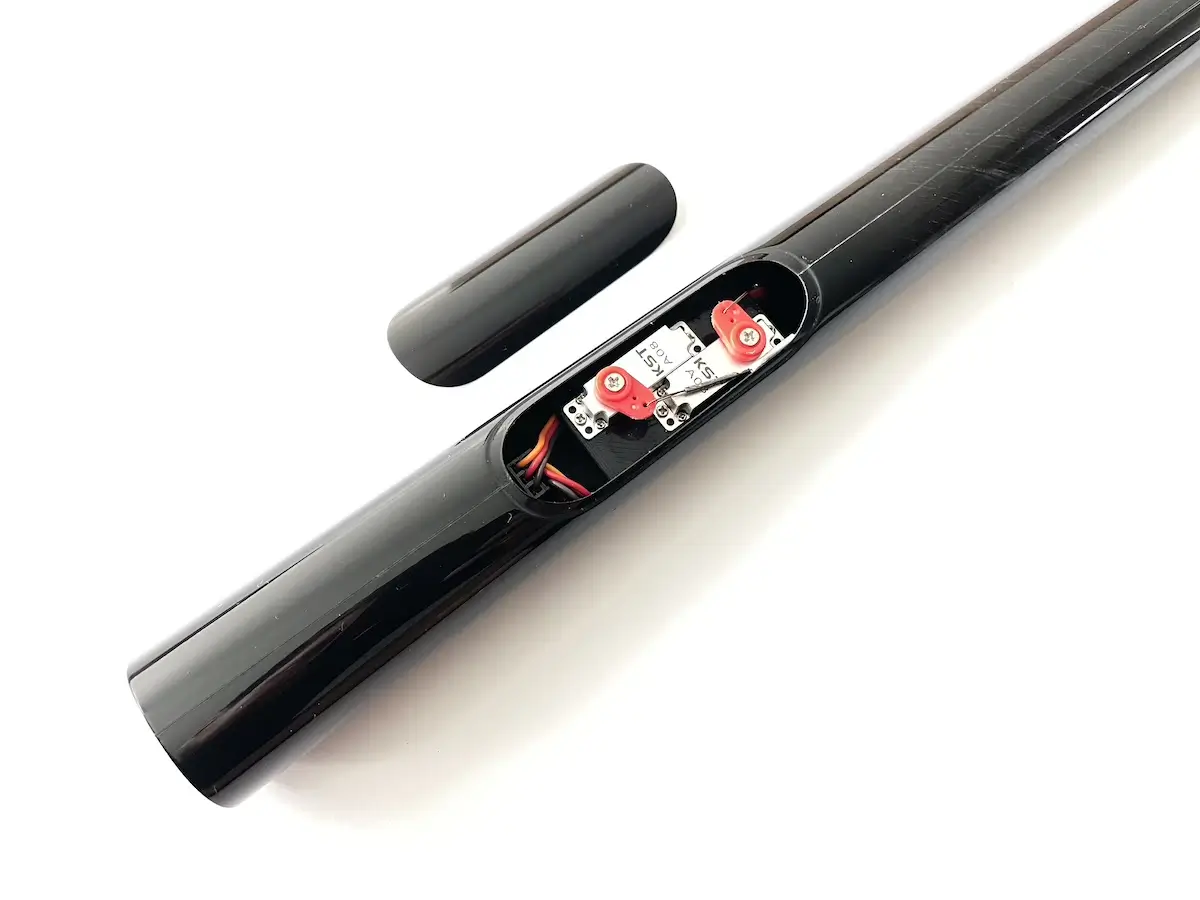

- Tailboom holds the tail servos and uses Pull-Spring control linkage
- Traditionally, available in the light, regular, and strong versions.

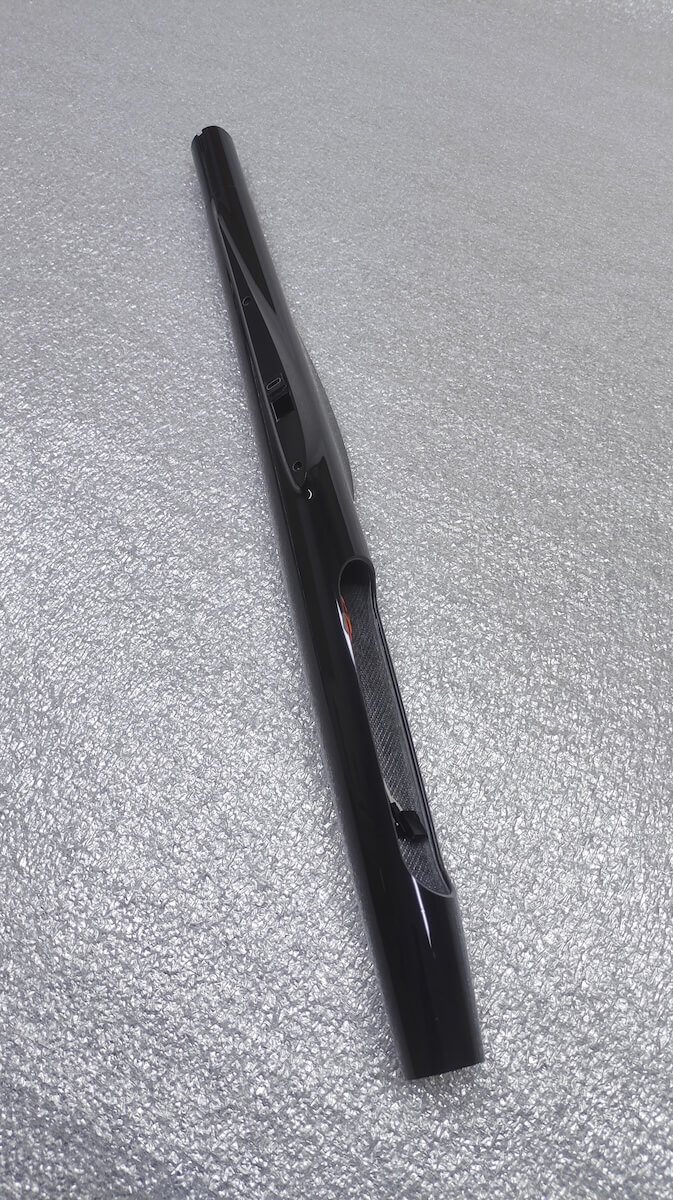

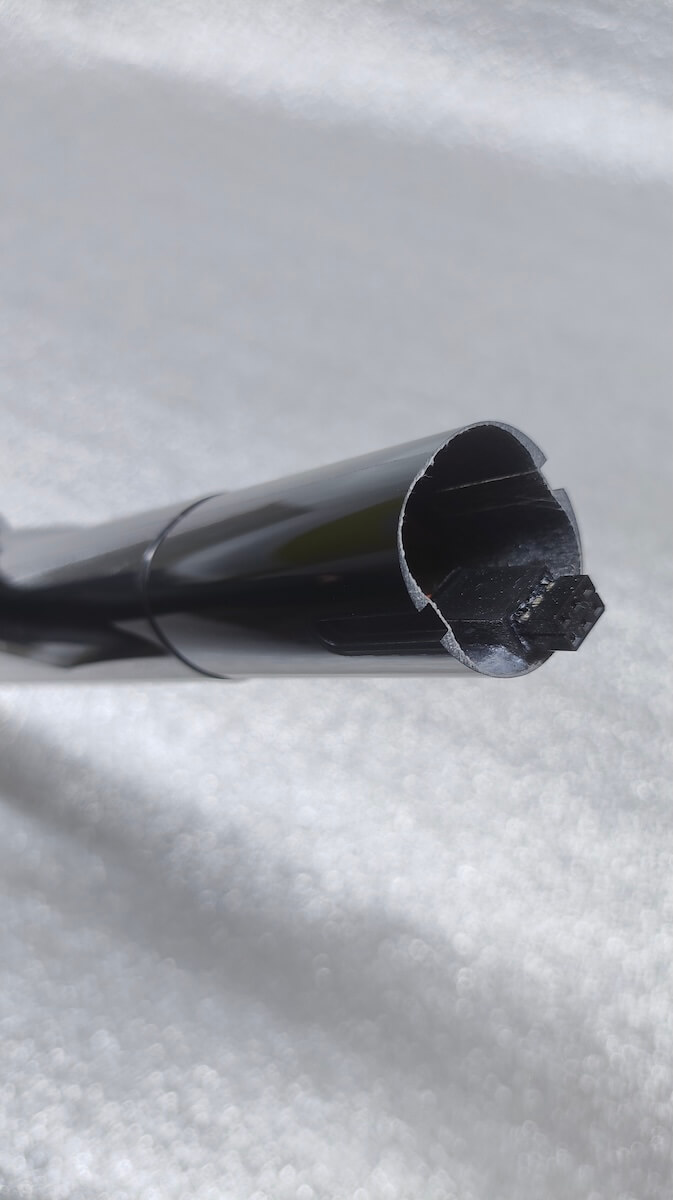

- The fuselage breaks down in two parts for transportation and storage

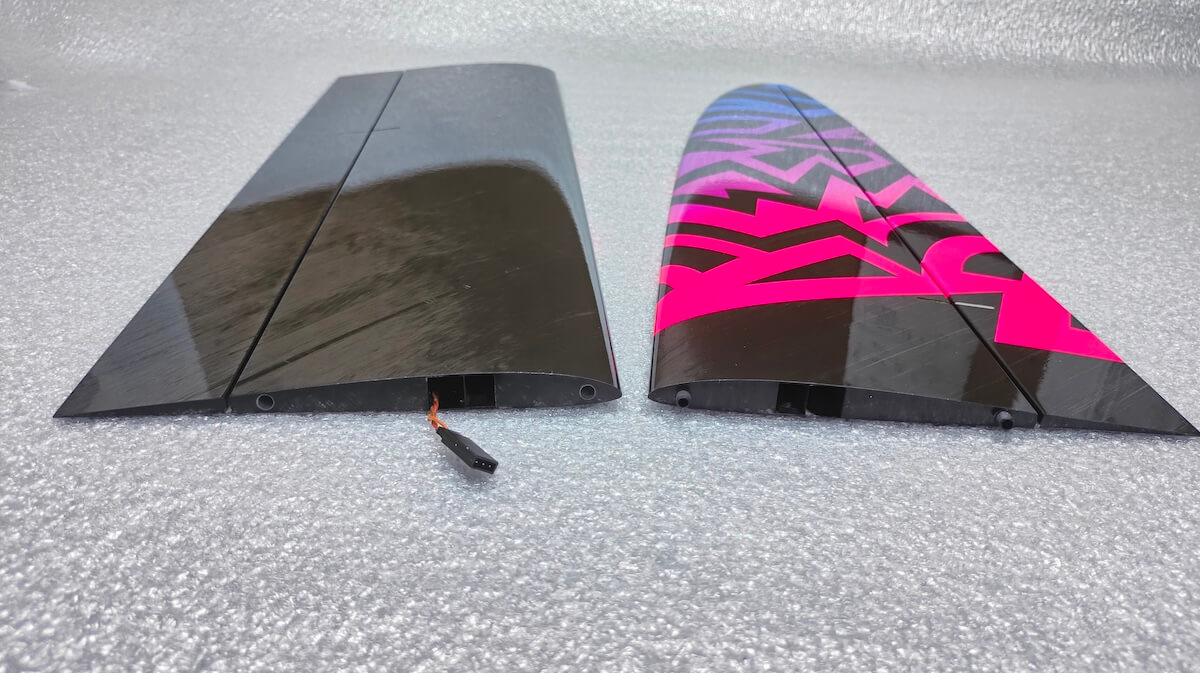

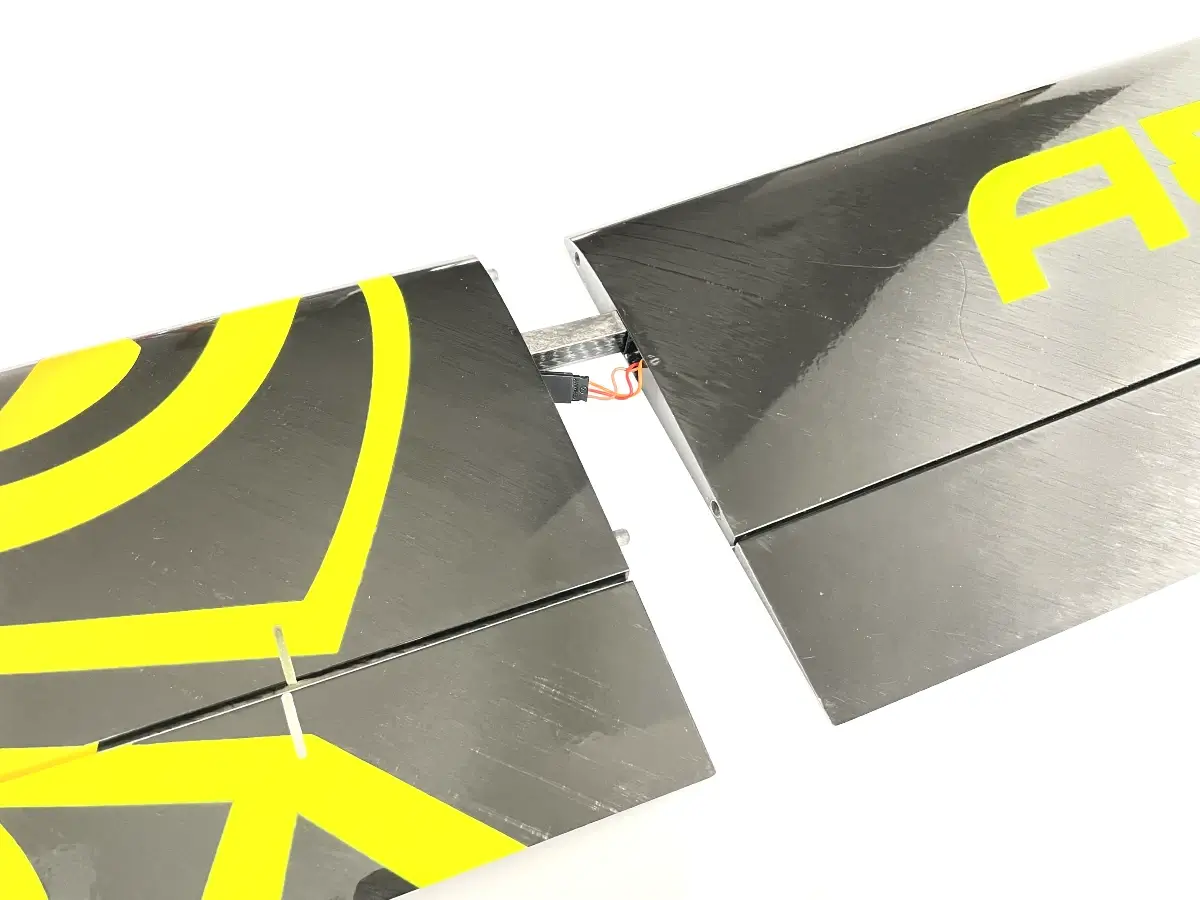

- In a combo with a 4-panel wing it packs into less than 80cm box
- The wing uses a high-density XPS core for a smooth finish

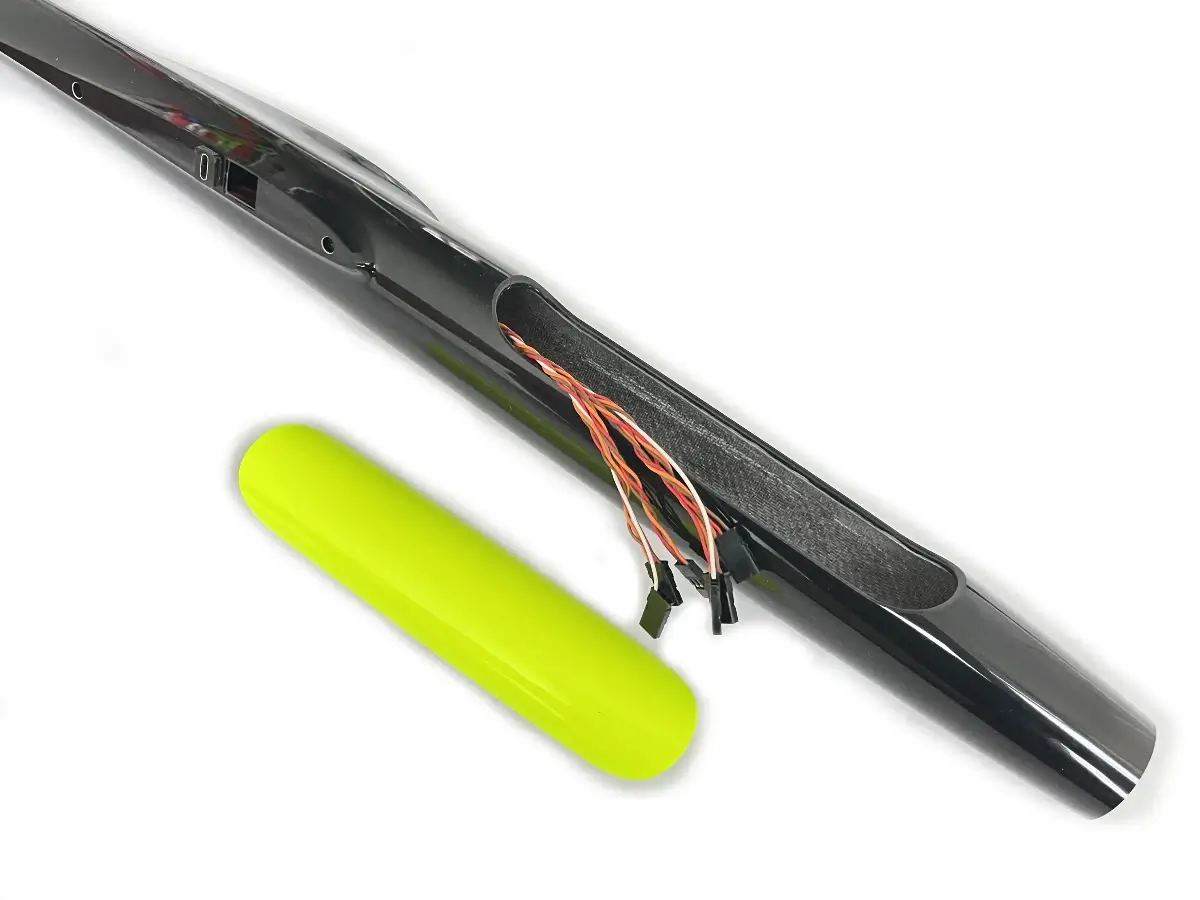

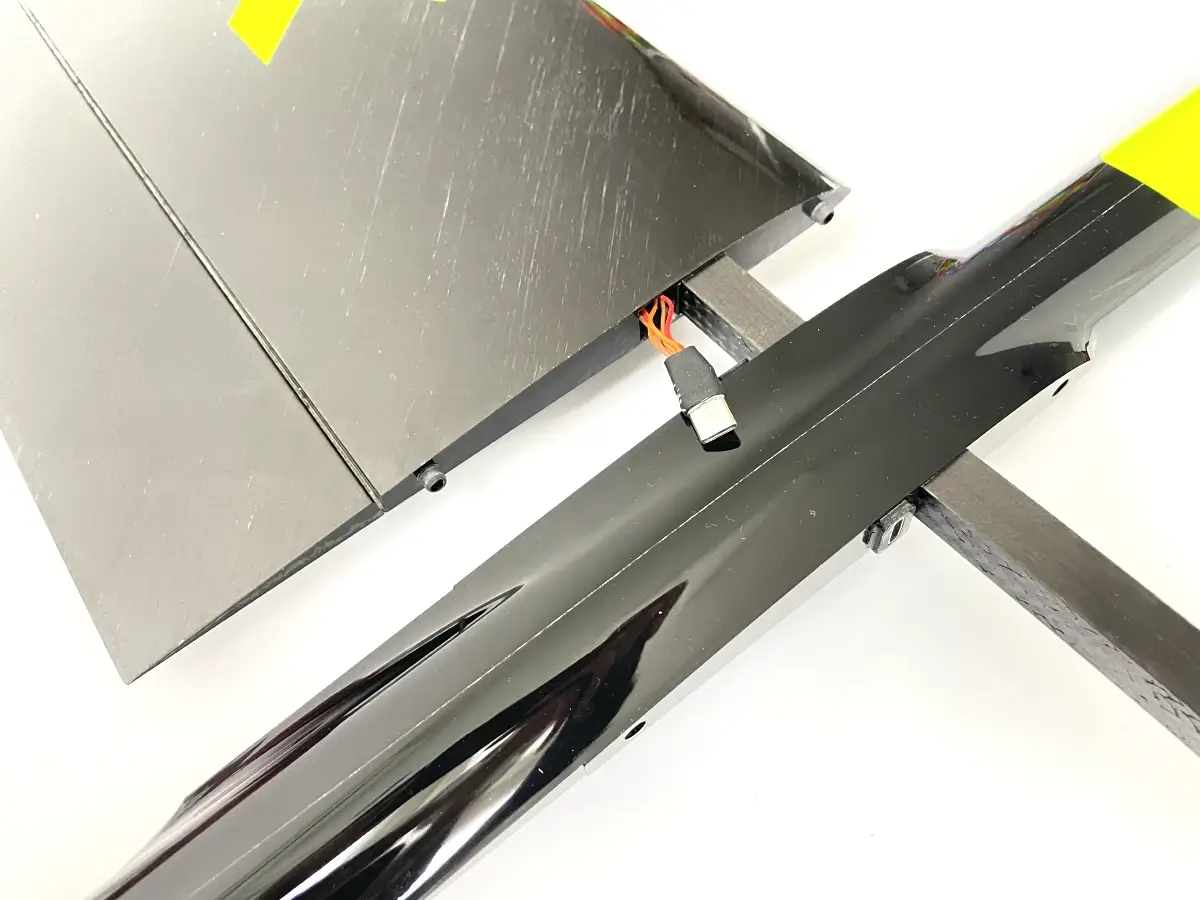

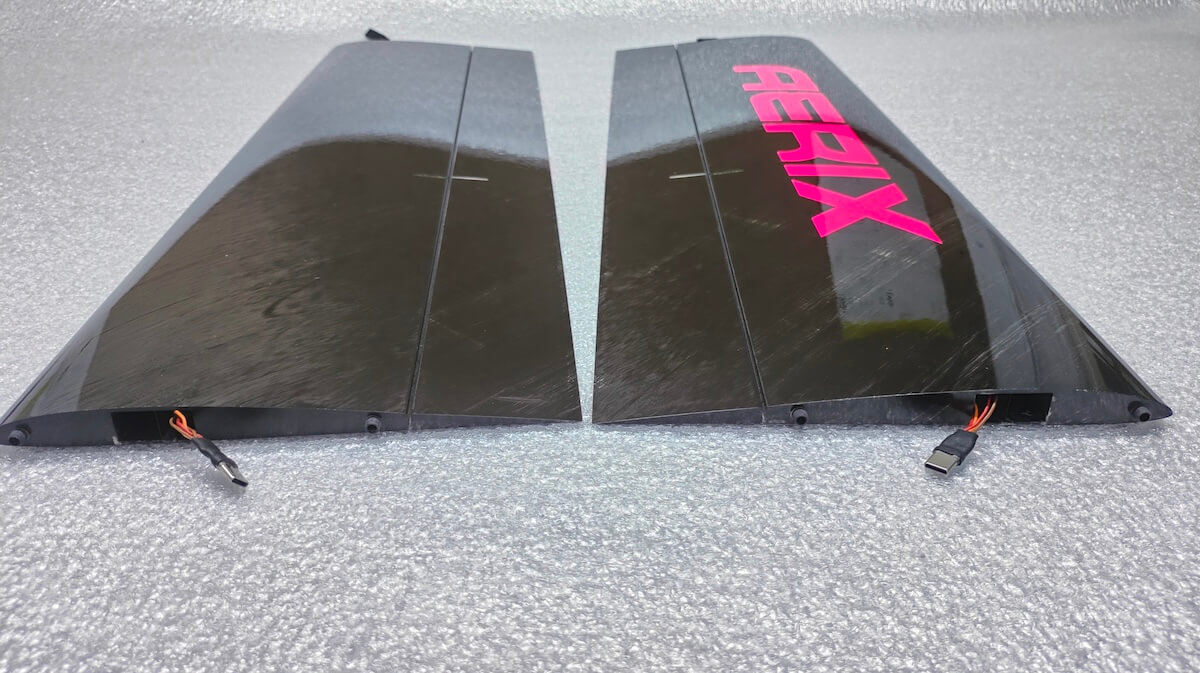

- Wing harness connects to the fuselage via USB-C connector

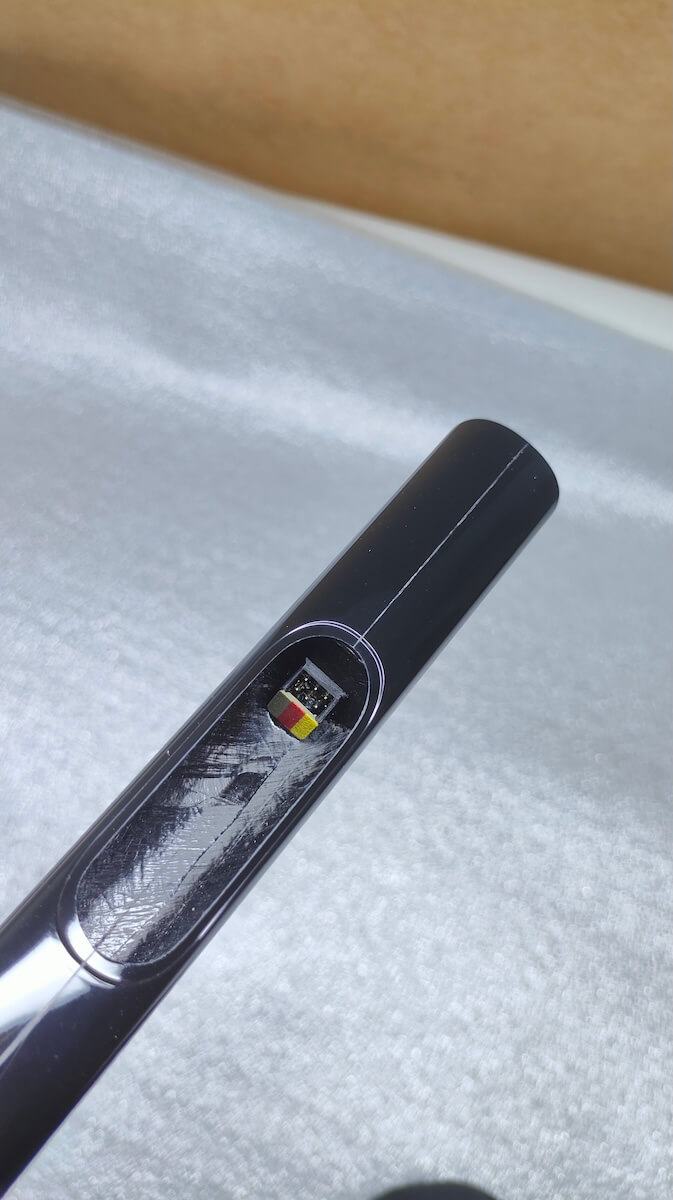

- The tailboom features a Plug-and-Play servo installation – no soldering required
- The airframe is designned to use 8-9g KST servos which are a great ballance of cost and quality for a competition-class vehicle.

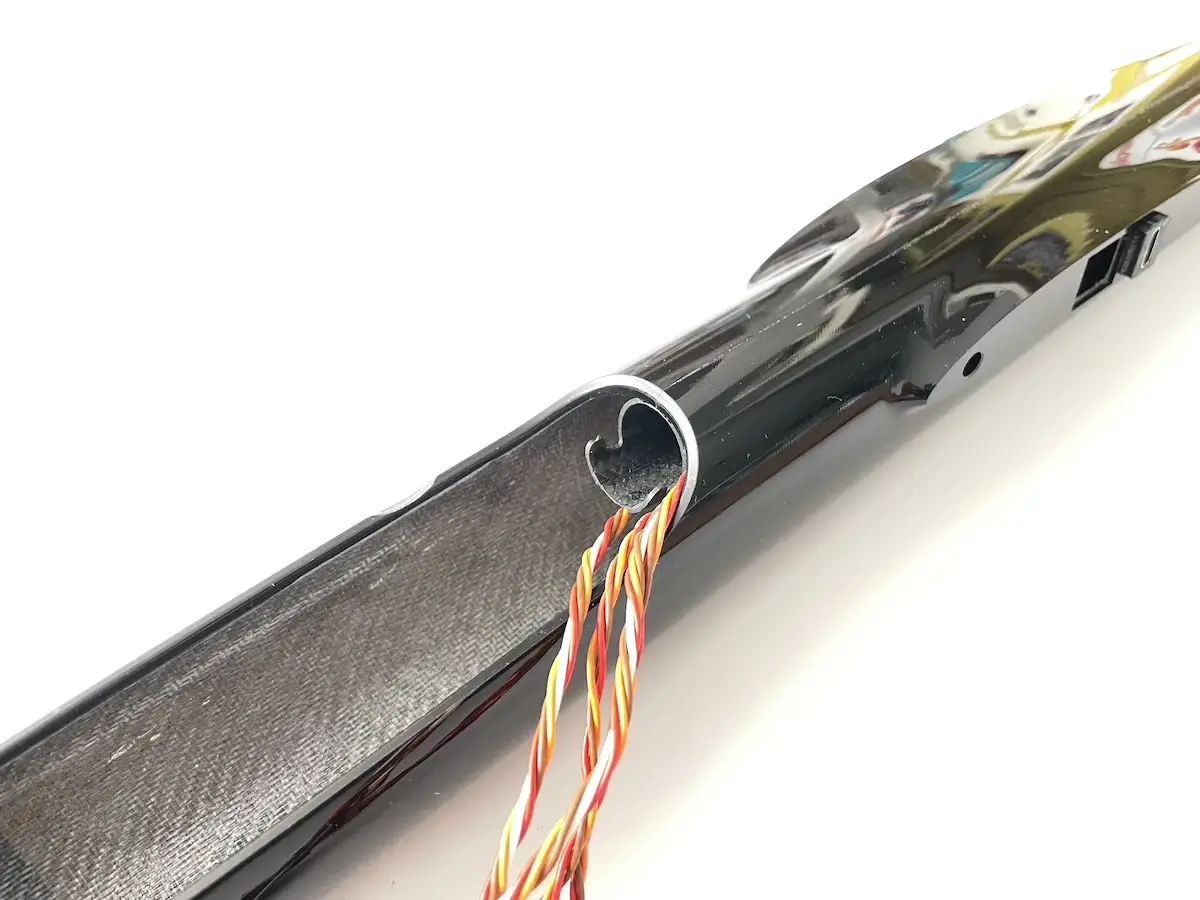

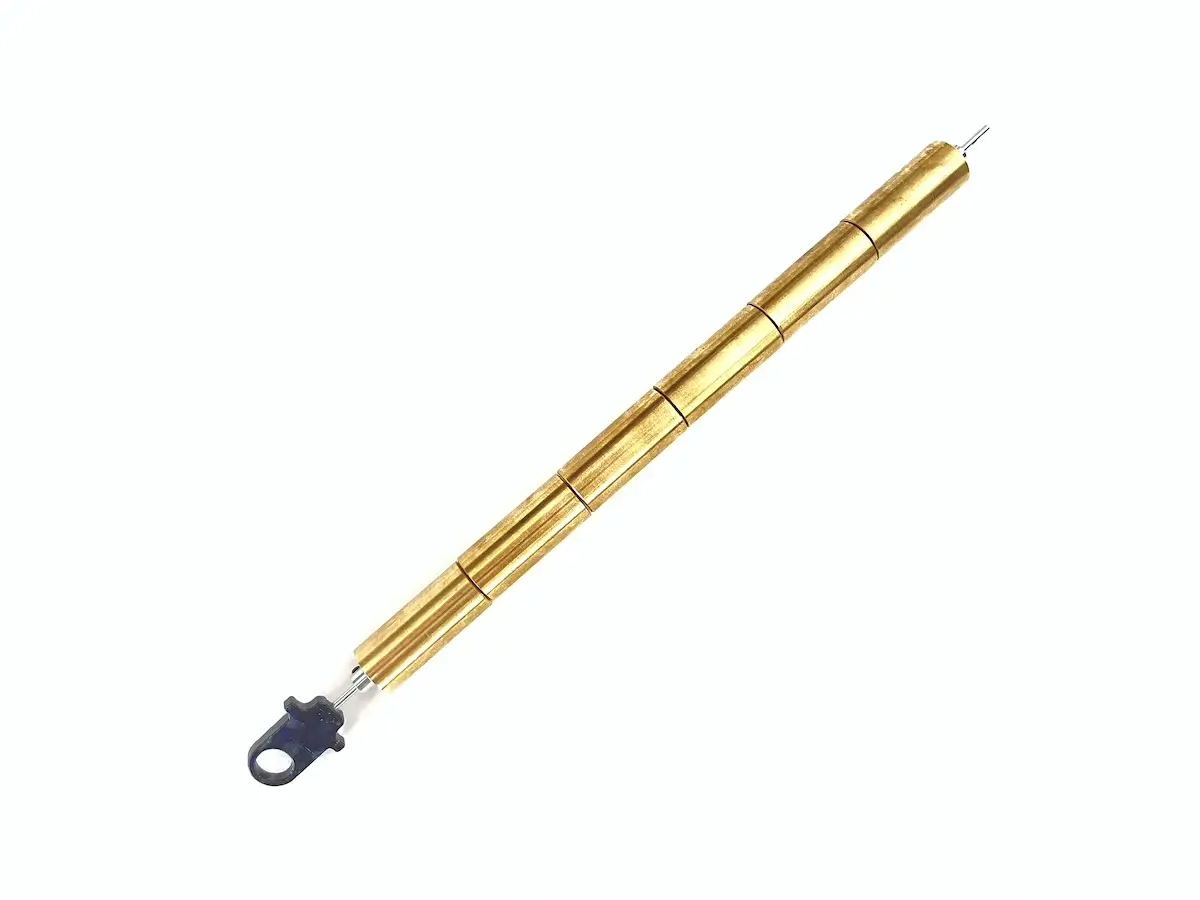

- The ballast will be available later in the year as an optional kit that you can install yourself.
So, if you are looking for a new F5J glider for the new season, Aerix might be a great choice.
Aerix 2.5m F5J Customization Options
The manufacturer is commited to hold some stock for these models for you to choose from. Otherwise, you can pre-order the design you like it as a Kit or PNP version.

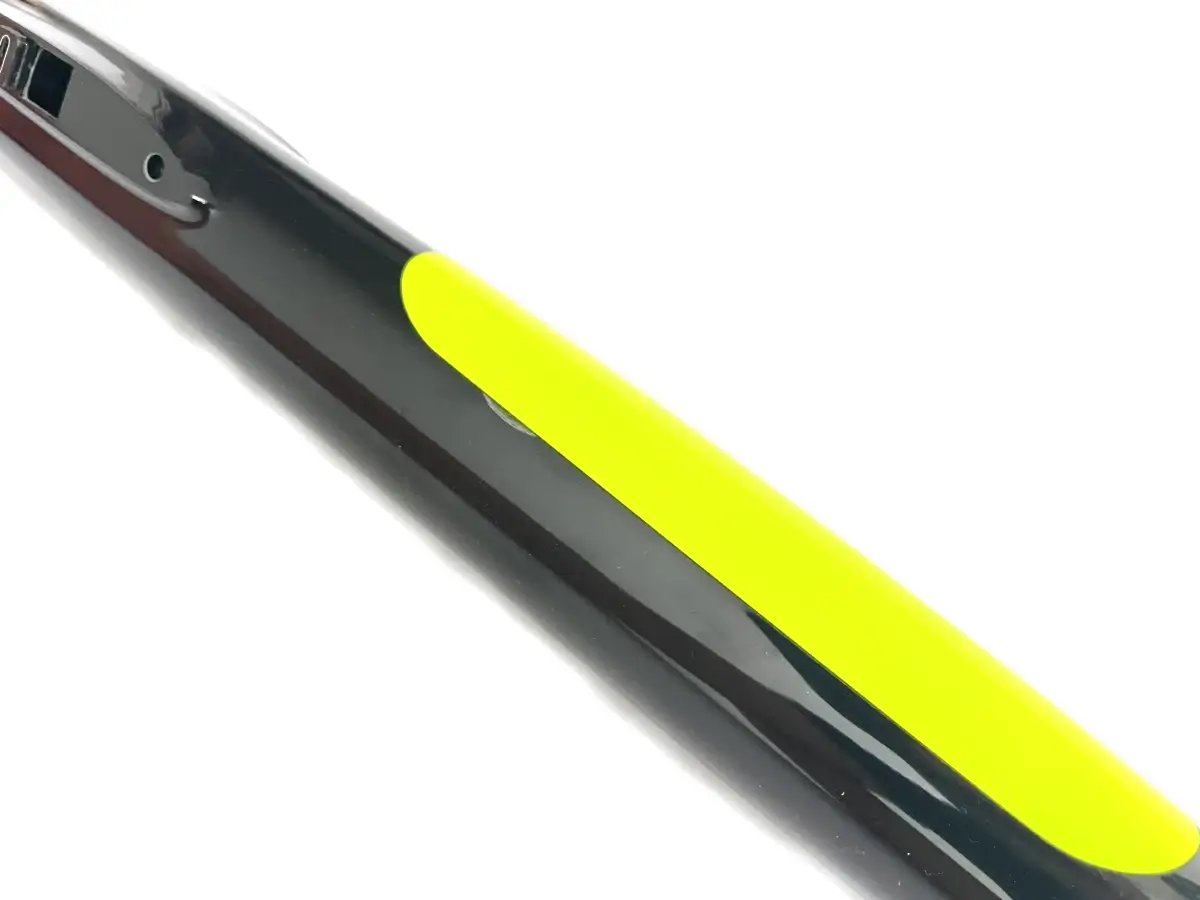

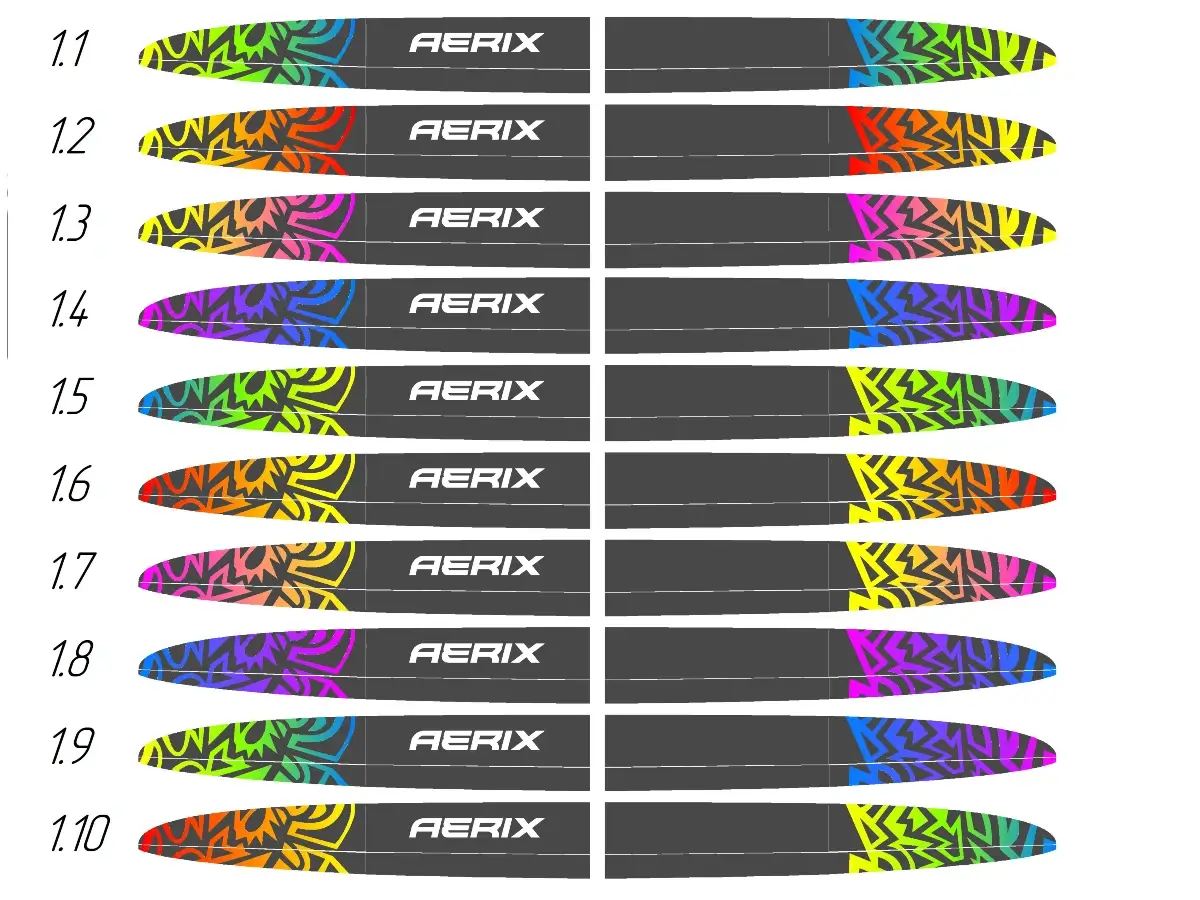

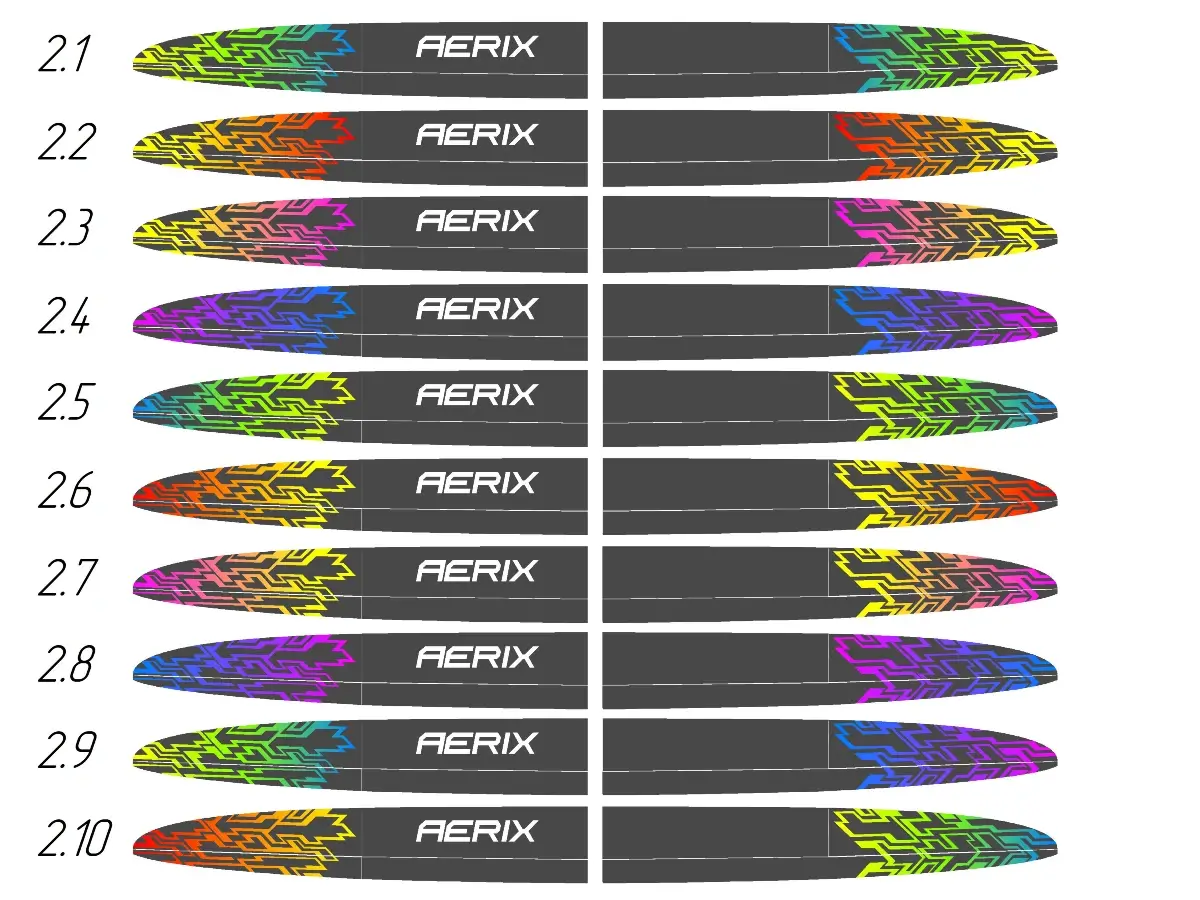

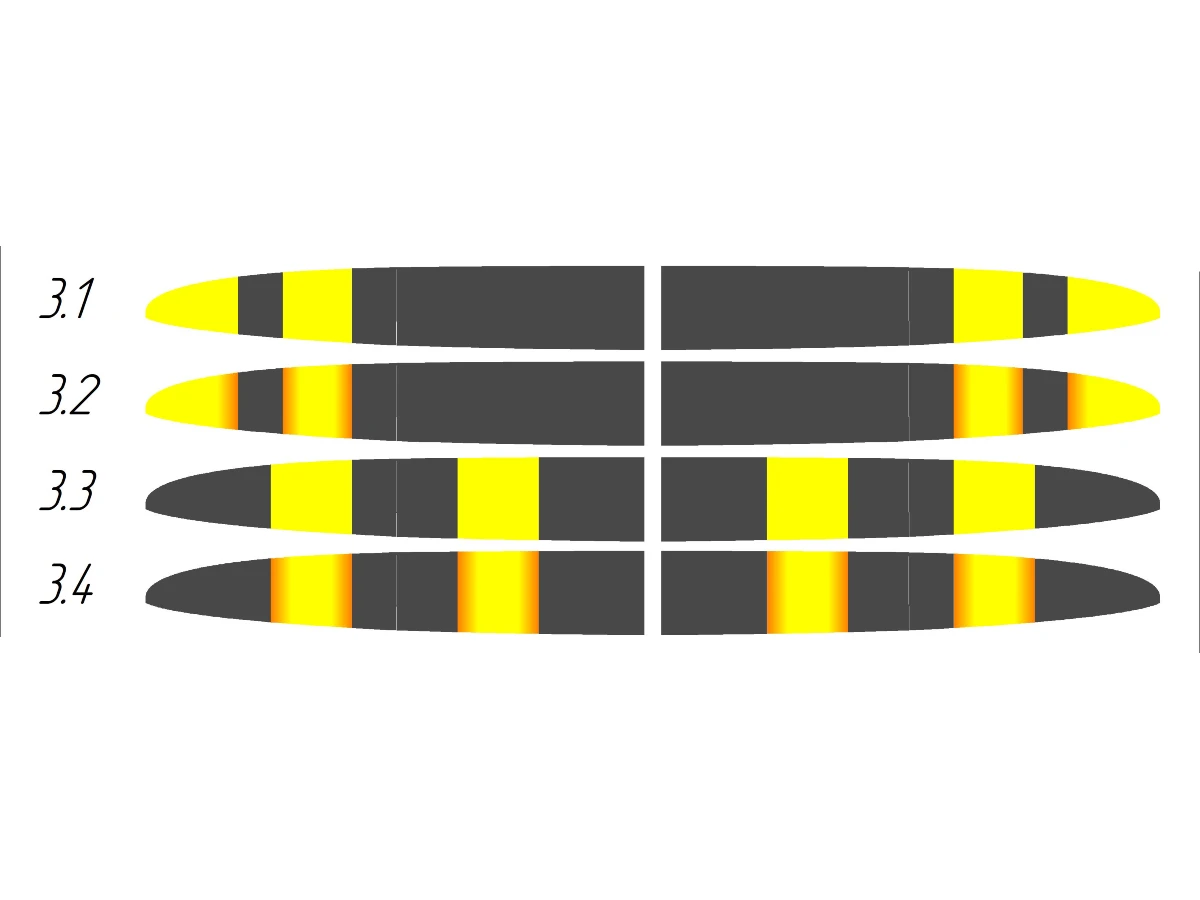

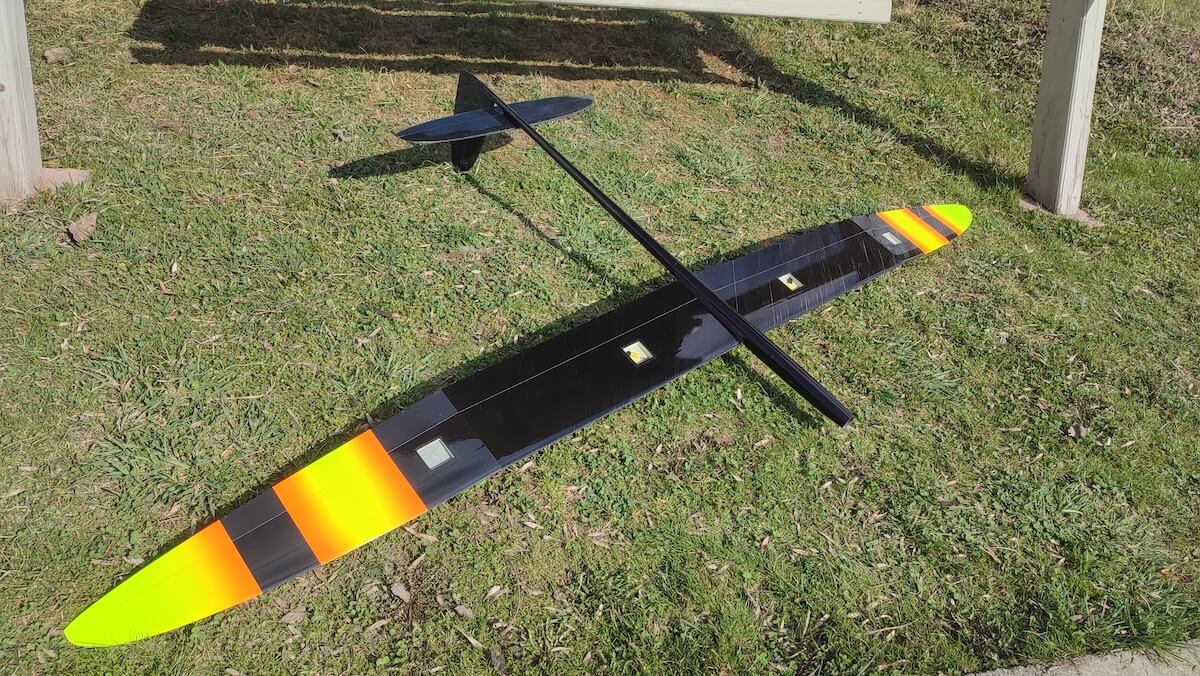

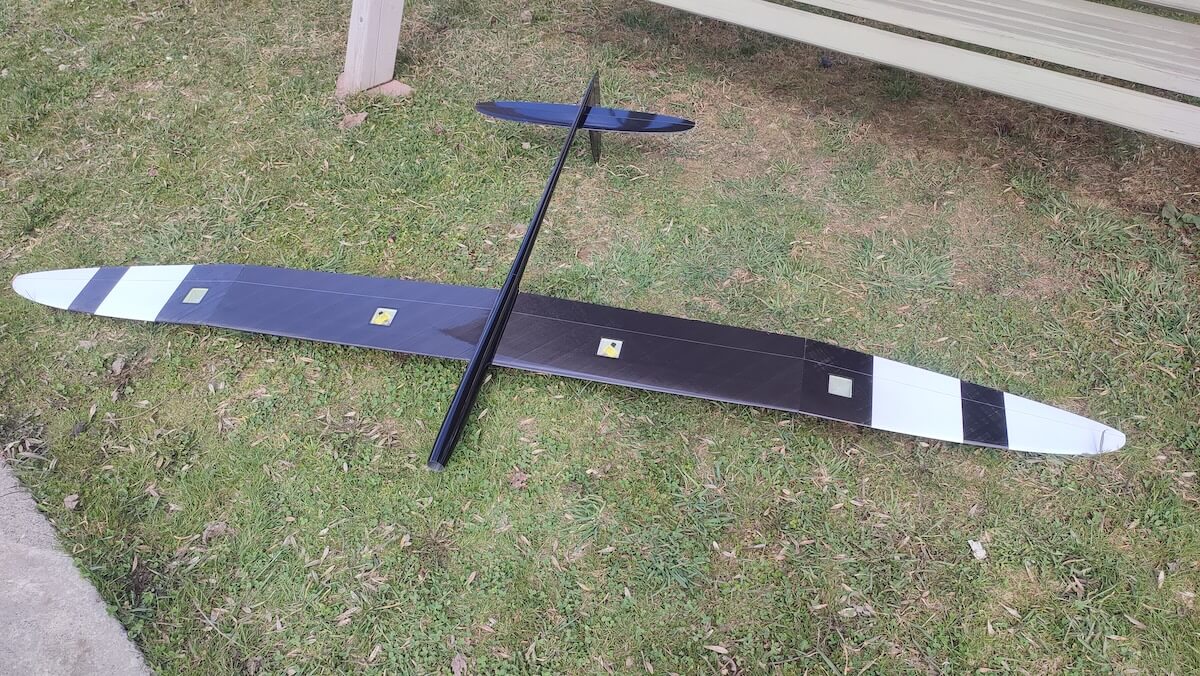

You can choose the design and colors of the top wing pattern, stripes on the underwing, as well as the colors of the logo on the top of the wing, front hatch cover of the fuselage, and rudder with elevator separately.
The lead time will differ accordingly, but usually is no more than 6 weeks.
Reccommended Gear
- 32mm diameter spinner
- Carbon Fiber folding prop

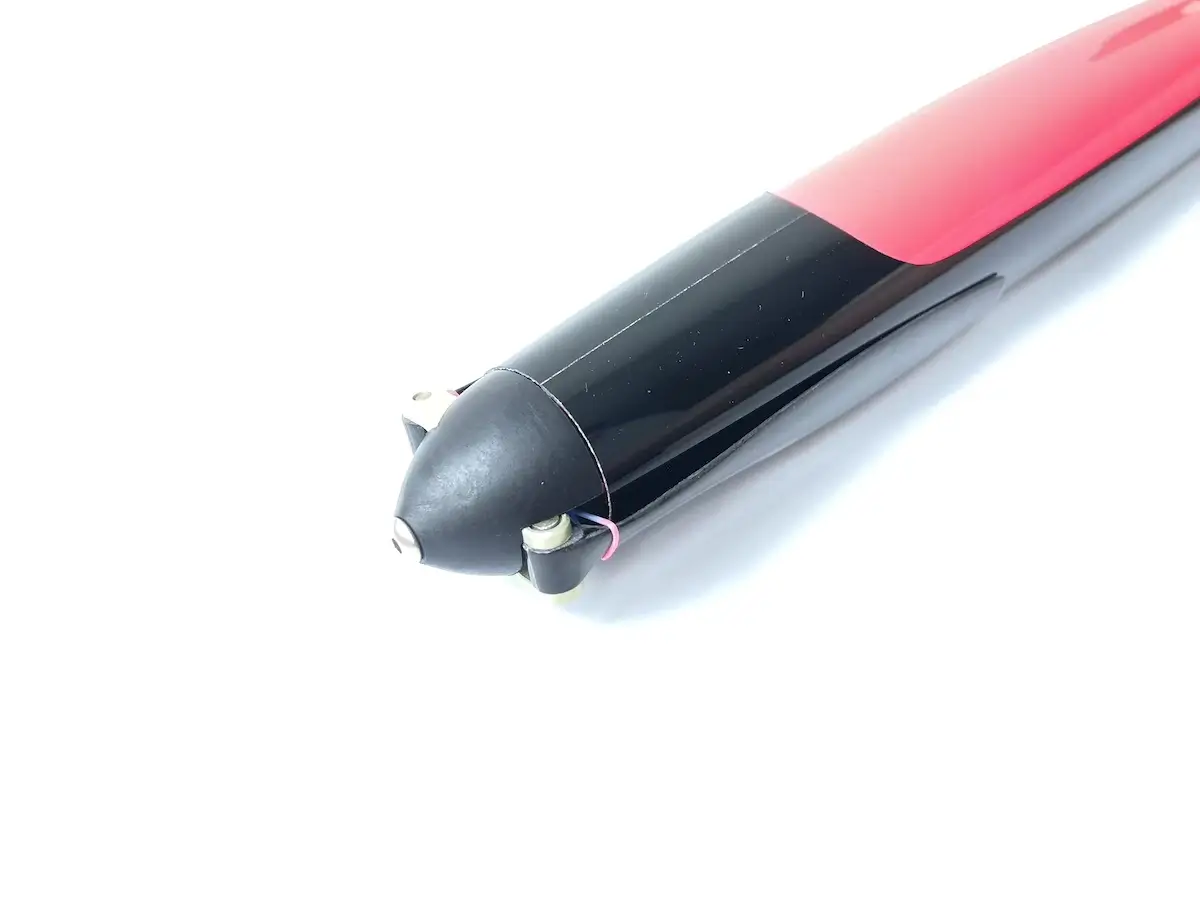

- 28mm diameter outrunner
- 2x KST X08/A08, MKS HS75 for tails

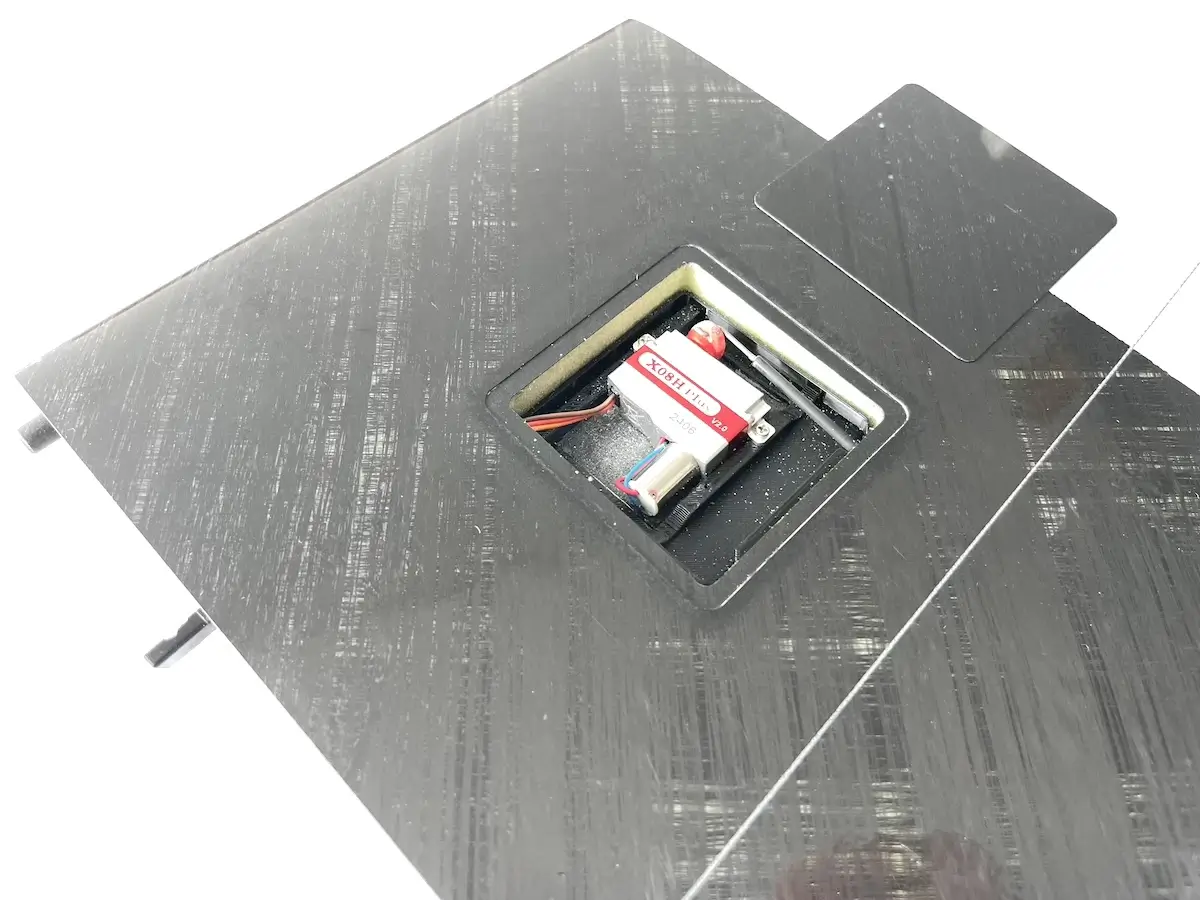

- 4x KST X08H/A08H, HS08 A, MKS HV6120, MKS HS75 for wings
- 7+ channel Micro RC Receiver

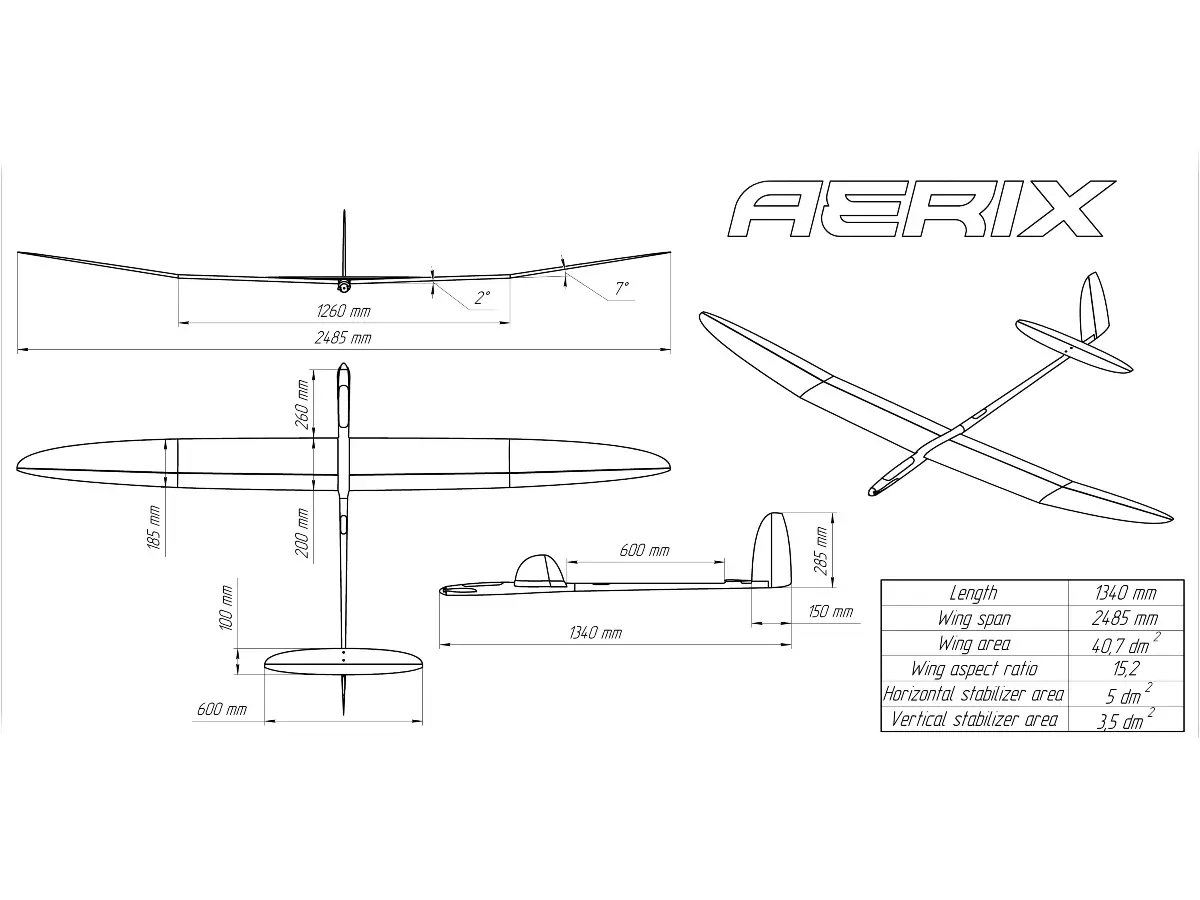

Aerix F5J Technical Data
| Powertrain Options For Aerix F5J | |||
|---|---|---|---|
| Cell Number | 2S LiPo | 3S LiPo | |
| Motor | 2836 ~1500kv outrunner | 2830 ~900-1000kv outrunner | |
| Propeller | 12×6 folding | 10×6 folding | |
| ESC rating | 35A+ | 20A+ | |
| Battery Capacity | 1200mAh | 800mAh | |
| Airex F5J Weight Data (g) | |||
|---|---|---|---|
| Layup | Regular Carbon | ||
| Fuselage (2-peice) | 108 – 115g | ||
| Single Central Wing Panel | 88 – 102g | ||
| Single Outer Wing Panel | 50 – 53g | ||

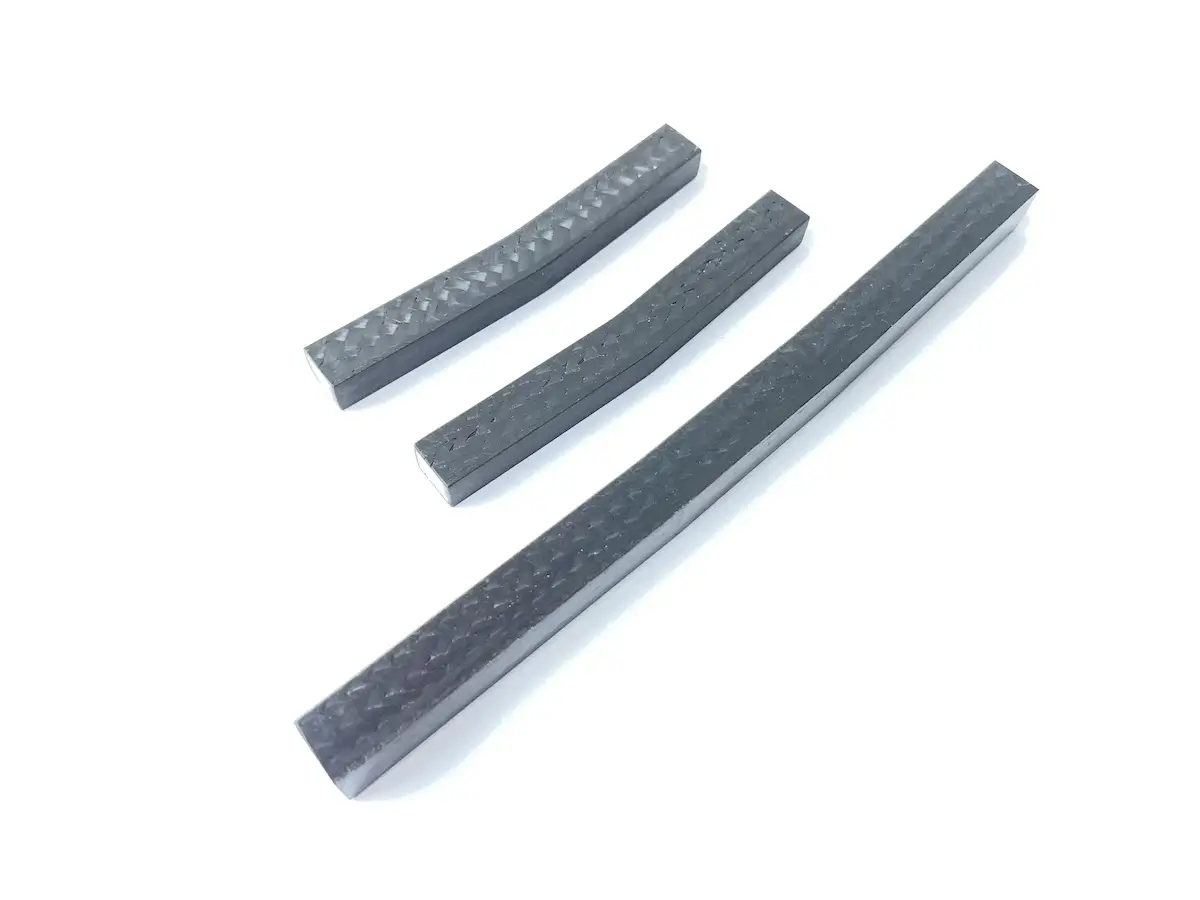

| Wing Joiners Set | 14 – 21g | ||
| Horisontal Stabilizer | 19 – 21g | ||

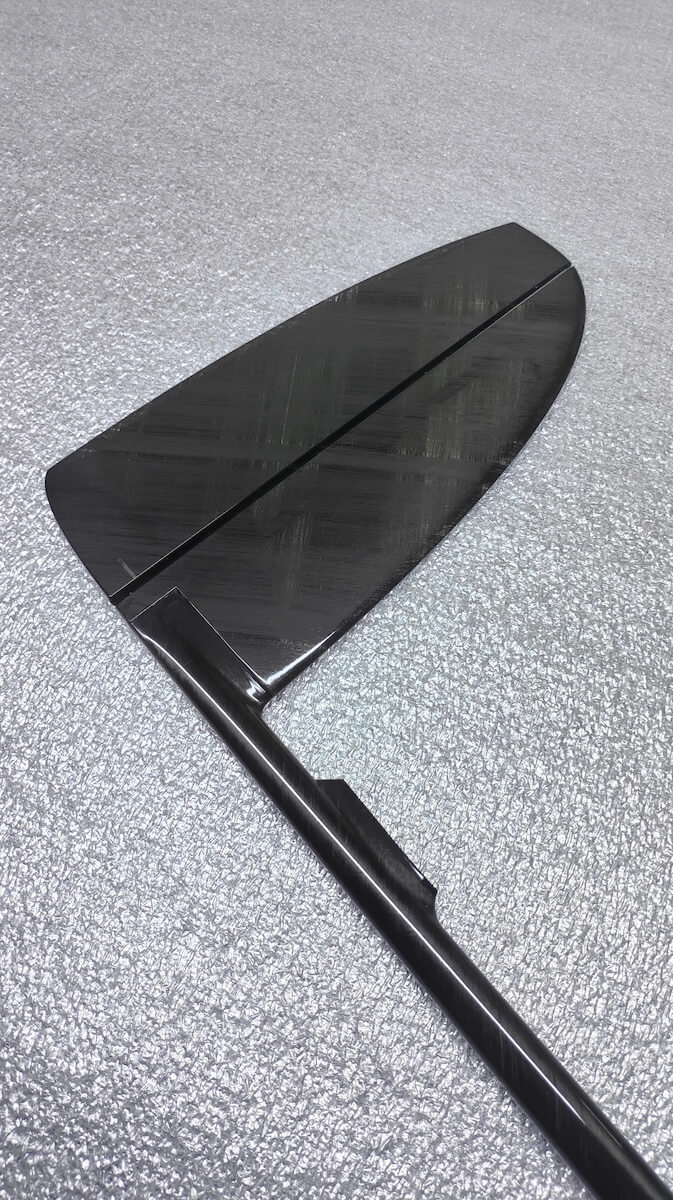

| Vertical Fin | 16 – 18g | ||
| Accessories and glue | 16g | ||
| Flying weight from | ~680g | ||
Recommended Settings for Aerix F5J
| Aerix F5J Control Throws and Camber Settings | |||
|---|---|---|---|
| CG Position | 75-80mm from the LE, measured at the root of the wing. | ||
| Rudder | +/- 25mm | ||
| Elevator | +/- 15mm | ||
| Ailerons | +/- 14mm (Ail to Flap: +/- 6mm) | ||
| Cruise | Flat bottom of the wing (0mm) or aligned with wing fairing on the fuselage. | ||
| Speed | 1-3mm up | ||
| Thermal 1 | 3mm down | ||
| Thermal Max | 8mm down | Brakes | Flaps: 25-30mm down, Ailerons: 15mm down or 7mm up |
